Rubber-covered holding magnets

for holding on sensitive surfaces
All rubber-coated holding magnets are fitted with high-energy magnets made of rare earths (NdFeB) and retain their stated magnetic force
(10 N ˜ 1 kg) over their lifetimes. The rubber-like coating is made of
Santoprene™, an ozone-resistant, tearproof elastomer.
The holding magnets are ideal for fixing items on steel surfaces that are susceptible to scratching. With their soft magnetic surface, they feature both excellent holding force and exceptionally good lateral shifting force. Thanks to their tight rubber coating, the holding magnets are also suitable for outdoor use.
Usage temperature: max. 80°C
PRODUCT DESCRIPTION
Rubber-coated holding discs
with threaded hole on the backside


TypeD ØHLd ØGHolding force
1*2*
GS1212,07,014,88,0M412,0 N10,0 N
GS2222,06,012,08,0M450,0 N40,0 N
GS3131,06,012,08,0M475,0 N60,0 N
GS4343,010,512,08,0M477,0 N55,0 N
GS6666,08,515,010,0M5180,0 N125,0 N
GS8888,08,517,012,0M8420,0 N280,0 N
All dimensions in mm.

Holding force 1* St 37 steel, 8.0 mm
Holding force 2* steel sheet 0.8 mm


Disc-type holding magnet, rubber-coated, black
with threaded stem, zinc plated


Type D Ø H M Holding force Operating temp.
GB22 22,0 6,0 M4x6,5 50N 60°C
GB43 43,0 6,0 M6x15 85N 80°C
GB66 66,0 8,5 M8x15 180N 80°C
GB88 88,0 8,5 M8x15 420N 80°C



Disc-type holding magnet, rubber-coated, black,
central hole with cylindrical counterbore for fastening with cylinder head screw DIN84


Type D Ø d Ø H For screw DIN84 Holding force
GZ2222,04,16,0M3 and M435N
GZ3131,05,96,0M4 and M575N



Rubber-coated holding system
with six high energy magnets installed
Type GU12


Holding forces:St37,8,0 mm:120 N
 steel sheet,0,8 mm:80 N



Holding magnet block, fully rubber-coated
Holding force 300 N, lateral shifting force 90 N
Suitable for outdoor use
Easy installation with 2 screws or nuts M5
The large distance between the magnetic poles of the two NdFeB
high-energy magnets produces a smaller drop in holding force on
uneven or rounded steel surfaces.
Type GU 5070





Holding system with three rubber-coated holding magnets, which are flexibly installed on a triangular aluminium plate. Good holding on curved car roofs.

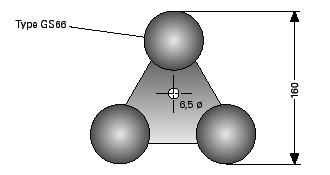

Type GS663
Equipped with 3 holding discs Type GS66
Holding forces:St37,6,0 mm:540 N
 steel sheet,0,8 mm:375 N
Type GS443
Equipped with 3 holding discs Type GS43
Holding forces:St37,6,0 mm:230 N
 steel sheet,0,8 mm:165 N
ORDER LIST
Prices /pc. ex works Berlin plus packing, VAT only in Germany
(A = Please ask for price)
Catalogue page Type 1 - 19 20 - 49 50 - 99 100 - 199 200 - 499 500 - 1000
 31  GS12   5.05  4.90  4.25  3.35  2.25  1.85    Add to shopping cart
 31  GS22   6.20  5.80  4.70  3.90  2.85  2.45    Add to shopping cart
 31  GS31   7.40  6.20  5.50  4.90  4.05  3.85    Add to shopping cart
 31  GS43   8.40  6.65  5.80  5.20  4.70  4.10    Add to shopping cart
 31  GS66   16.10  13.50  10.60  9.30  8.50  7.60    Add to shopping cart
 31  GS88   25.35  21.10  19.50  17.50  16.90  15.20    Add to shopping cart
 31  GU12   8.80  7.95  7.50  6.70  5.40  4.30    Add to shopping cart
 31  GS443   58.50  51.50  A  A  A  A    Add to shopping cart
 31  GS663   85.00  77.00  A  A  A  A    Add to shopping cart
 31  GU5070   24.00  19.80  17.10  15.40  12.90  11.50    Add to shopping cart
 31  GB22   7.50  6.80  5.70  4.60  3.90  2.95    Add to shopping cart
 31  GB43   8.60  7.00  6.20  5.50  4.90  4.20    Add to shopping cart
 31  GB66   16.50  13.90  10.90  9.50  8.70  7.70    Add to shopping cart
 31  GB88   25.50  22.00  19.70  17.70  16.90  15.20    Add to shopping cart
 31  GZ22   6.20  5.70  4.80  3.90  3.20  2.90    Add to shopping cart
 31  GZ31   8.20  7.50  5.80  4.70  4.10  3.85    Add to shopping cart
Small orders: Payments from foreign countries result in additional bank charges, therefore we charge an additional lump sum of 15,- Euro for all foreign orders with a goods value less than 153,- Euro.

Please ask for our conditions of sale, delivery and payment in english and our export conditions for your country.
