Products/Shop Permanent Magnets DeltaMagnets
PRODUCT DESCRIPTION
The magnetisation is not affected by strong opposing fields. The maximum operating temperature depends on the magnet dimensions (L/D ratio). DeltaMagnets may be used at liquid helium temperatures. In normal environmental conditions SmCo can be used without additional surface protection. We supply SmCo in various qualities corresponding to the application. |
 |
Please ask for our assistance. The following magnet dimensions are readily available from stock as standard magnets. We can offer and supply any other size at short notice. We supply all standard magnets in the more high-quality magnetic material Sm2Co17 (code 190/119). Magnets are supplied magnetised. All dimensions in mm. General tolerances after DIN 7168. |
CIRCULAR DISC MAGNETS
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Type | D Ø | x | L (a) | ||||||
| DE153 | 1,5 | x | 3,0 | ||||||
| DE184 | 1,8 | x | 4,0 | ||||||
| DE202 | 2,0 | x | 2,0 | ||||||
| DE204 | 2,0 | x | 4,0 | ||||||
| DE210 | 2,0 | x | 10,0 | ||||||
| DE32 | 3,0 | x | 2,0 | ||||||
| DE30 | 3,0 | x | 3,0 | ||||||
| DE41 | 4,0 | x | 1,5 | ||||||
| DE405 | 4,0 | x | 5,0 | ||||||
| DE52 | 5,0 | x | 2,0 | ||||||
| DE53 | 5,0 | x | 3,0 | ||||||
| DE54 | 5,0 | x | 4,0 | ||||||
| DE505 | 5,0 | x | 5,0 | ||||||
| DE62 | 6,0 | x | 2,0 | ||||||
| DE64 | 6,0 | x | 4,0 | ||||||
| DE610 | 6,0 | x | 10,0 | ||||||
| DE73 | 7,0 | x | 3,0 | ||||||
| DE83 | 8,0 | x | 3,0 | ||||||
| DE85 | 8,0 | x | 5,0 | ||||||
| DE103 | 10,0 | x | 3,0 | ||||||
| DE105 | 10,0 | x | 5,0 | ||||||
| DE110 | 10,0 | x | 10,0 | ||||||
| DE143 | 14,0 | x | 3,0 | ||||||
| DE154 | 15,0 | x | 4,0 | ||||||
| DE155 | 15,0 | x | 5,0 | ||||||
| DE1510 | 15,0 | x | 10,0 | ||||||
| DE205 | 20,0 | x | 5,0 | ||||||
| DE255 | 25,0 | x | 5,0 | ||||||
| DE258 | 25,0 | x | 8,0 | ||||||
| DE2515 | 25,0 | x | 15,0 | ||||||
PLATE AND BLOCK MAGNETS
|
||||||||
|---|---|---|---|---|---|---|---|---|
| Type | A | x | B | x | C | |||
| DE22 | 2,0 | x | 2,0 | x | 1,0 | |||
| DE33 | 3,0 | x | 3,0 | x | 2,0 | |||
| DE42 | 4,0 | x | 4,0 | x | 2,0 | |||
| DE45 | 5,0 | x | 4,5 | x | 1,5 | |||
| DE55 | 5,0 | x | 5,0 | x | 3,0 | |||
| DE36 | 6,0 | x | 3,0 | x | 1,0 | |||
| DE107 | 10,0 | x | 7,0 | x | 2,0 | |||
| DE1010 | 10,0 | x | 10,0 | x | 3,0 | |||
| DE1209 | 12,0 | x | 9,0 | x | 2,5 | |||
| DE1515 | 15,0 | x | 15,0 | x | 6,0 | |||
| DE1612 | 16,0 | x | 12,0 | x | 3,0 | |||
| DE1816 | 18,0 | x | 16,0 | x | 4,0 | |||
| DE2621 | 26,0 | x | 21,0 | x | 5,0 | |||
| DE3010 | 30,0 | x | 10,0 | x | 6,0 | |||
| DE3020 | 30,0 | x | 20,0 | x | 10,0 | |||
| DE3227 | 32,0 | x | 27,0 | x | 6,0 | |||
RING MAGNETS
|
|||||||
|---|---|---|---|---|---|---|---|
| Type | AD Ø | x | ID Ø | x | L (a) | ||
| DE2015 | 20 | x | 10 | x | 5 | ||
| DE2512 | 25 | x | 12 | x | 8 | ||
| DE3011 | 30 | x | 10 | x | 10 | ||
| DE4015 | 40 | x | 15 | x | 10 | ||
|
Magnetic values |
Energy product (BxH)max |
Remanence Br |
Coercive field strength (T = 20°C) |
Max. working temperature * |
|
| BHC | JHC | ||||
kJ m3 |
mT |
kA m |
kA m |
°C | |
| Sm2Co17 (190/119) | ≥ 190 | ≥ 1000 | ≥ 680 | ≥ 1195 | = 300 |
| $nbsp; | |||||
ORDER LIST
| Prices /pc. ex works Berlin plus packing, VAT only in Germany (A = Please ask for price) |
||||||||
| Catalogue page | Type | 1 - 19 | 20 - 49 | 50 - 99 | 100 - 199 | 200 - 499 | 500 - 1000 | |
|---|---|---|---|---|---|---|---|---|
| 10 | DE153 | 1.20 | 0.90 | 0.60 | 0.45 | 0.35 | 0.30 | Add to shopping cart |
| 10 | DE184 | 1.25 | 0.95 | 0.65 | 0.50 | 0.40 | 0.35 | Add to shopping cart |
| 10 | DE202 | 1.25 | 0.95 | 0.65 | 0.50 | 0.40 | 0.35 | Add to shopping cart |
| 10 | DE204 | 1.30 | 1.05 | 0.70 | 0.60 | 0.45 | 0.36 | Add to shopping cart |
| 10 | DE210 | 2.80 | 2.30 | 1.90 | 1.20 | 0.90 | 0.70 | Add to shopping cart |
| 10 | DE32 | 1.20 | 0.90 | 0.60 | 0.45 | 0.35 | 0.30 | Add to shopping cart |
| 10 | DE30 | 1.20 | 0.90 | 0.60 | 0.50 | 0.40 | 0.32 | Add to shopping cart |
| 10 | DE41 | 0.95 | 0.80 | 0.60 | 0.40 | 0.30 | 0.28 | Add to shopping cart |
| 10 | DE405 | 2.80 | 2.40 | 1.80 | 1.30 | 0.95 | 0.68 | Add to shopping cart |
| 10 | DE52 | 1.80 | 1.40 | 1.00 | 0.75 | 0.50 | 0.45 | Add to shopping cart |
| 10 | DE53 | 1.90 | 1.50 | 1.10 | 0.80 | 0.60 | 0.47 | Add to shopping cart |
| 10 | DE54 | 2.60 | 2.20 | 1.70 | 1.28 | 0.90 | 0.59 | Add to shopping cart |
| 10 | DE505 | 2.90 | 2.50 | 1.80 | 1.30 | 0.95 | 0.75 | Add to shopping cart |
| 10 | DE62 | 1.90 | 1.80 | 1.30 | 0.80 | 0.70 | 0.59 | Add to shopping cart |
| 10 | DE64 | 2.60 | 2.50 | 1.90 | 1.30 | 0.90 | 0.70 | Add to shopping cart |
| 10 | DE610 | 5.20 | 4.80 | 4.00 | 3.30 | 2.80 | 1.90 | Add to shopping cart |
| 10 | DE73 | 2.80 | 2.40 | 1.80 | 1.30 | 0.95 | 0.75 | Add to shopping cart |
| 10 | DE83 | 3.50 | 3.10 | 2.80 | 2.60 | 2.20 | 1.70 | Add to shopping cart |
| 10 | DE85 | 3.70 | 3.30 | 3.00 | 2.70 | 2.40 | 1.80 | Add to shopping cart |
| 10 | DE103 | 3.70 | 3.30 | 2.90 | 2.60 | 2.20 | 1.75 | Add to shopping cart |
| 10 | DE105 | 4.30 | 3.70 | 3.30 | 2.80 | 2.50 | 2.10 | Add to shopping cart |
| 10 | DE110 | 7.00 | 6.20 | 5.70 | 4.80 | 4.25 | 3.20 | Add to shopping cart |
| 10 | DE143 | 7.90 | 7.40 | 6.00 | 5.30 | 4.60 | 3.50 | Add to shopping cart |
| 10 | DE154 | 9.40 | 8.50 | 7.30 | 6.50 | 5.30 | 4.10 | Add to shopping cart |
| 10 | DE155 | 12.50 | 10.70 | 9.20 | 8.10 | 7.40 | 6.10 | Add to shopping cart |
| 10 | DE1510 | 19.40 | 17.90 | 14.80 | A | A | A | Add to shopping cart |
| 10 | DE205 | 18.50 | 16.50 | 14.30 | A | A | A | Add to shopping cart |
| 10 | DE255 | 24.50 | 19.90 | 17.80 | A | A | A | Add to shopping cart |
| 10 | DE258 | 26.50 | 21.50 | 19.50 | A | A | A | Add to shopping cart |
| 10 | DE2515 | 50.00 | 45.00 | 39.00 | A | A | A | Add to shopping cart |
| 10 | DE22 | 0.85 | 0.79 | 0.70 | 0.45 | 0.35 | 0.28 | Add to shopping cart |
| 10 | DE33 | 1.10 | 0.85 | 0.60 | 0.55 | 0.40 | 0.30 | Add to shopping cart |
| 10 | DE42 | 1.20 | 0.90 | 0.65 | 0.60 | 0.45 | 0.31 | Add to shopping cart |
| 10 | DE45 | 1.30 | 1.00 | 0.75 | 0.70 | 0.55 | 0.36 | Add to shopping cart |
| 10 | DE55 | 1.30 | 1.00 | 0.75 | 0.70 | 0.55 | 0.36 | Add to shopping cart |
| 10 | DE36 | 0.95 | 0.80 | 0.60 | 0.40 | 0.30 | 0.28 | Add to shopping cart |
| 10 | DE107 | 2.60 | 2.30 | 1.90 | 1.55 | 1.20 | 0.95 | Add to shopping cart |
| 10 | DE1010 | 2.80 | 2.50 | 2.10 | 1.60 | 1.30 | 1.05 | Add to shopping cart |
| 10 | DE1209 | 2.75 | 2.45 | 2.06 | 1.55 | 1.25 | 1.00 | Add to shopping cart |
| 10 | DE1515 | 13.20 | 11.70 | 9.10 | 8.10 | A | A | Add to shopping cart |
| 10 | DE1612 | 8.95 | 7.10 | 6.10 | 5.30 | A | A | Add to shopping cart |
| 10 | DE1816 | 13.50 | 11.70 | 9.10 | 8.10 | A | A | Add to shopping cart |
| 10 | DE2621 | 17.60 | 16.80 | 13.80 | 12.70 | A | A | Add to shopping cart |
| 10 | DE3010 | 24.00 | 22.50 | 19.00 | A | A | A | Add to shopping cart |
| 10 | DE3020 | 35.00 | 33.00 | 28.00 | A | A | A | Add to shopping cart |
| 10 | DE3227 | 34.00 | 32.00 | 27.00 | A | A | A | Add to shopping cart |
| 10 | DE2015 | 20.00 | 18.00 | 13.50 | 9.80 | A | A | Add to shopping cart |
| 10 | DE2512 | 34.00 | 32.00 | 27.00 | 19.00 | A | A | Add to shopping cart |
| 10 | DE3011 | 48.00 | 46.00 | 39.00 | 28.00 | A | A | Add to shopping cart |
| 10 | DE4015 | 75.00 | 69.00 | 61.00 | 48.00 | A | A | Add to shopping cart |
| Small orders: Payments from foreign countries result in additional bank charges, therefore we charge an additional lump sum of 15,- Euro for all foreign orders with a goods value less than 153,- Euro. Please ask for our conditions of sale, delivery and payment in english and our export conditions for your country. |
||||||||
MATERIAL VERSION
DeltaMagnet is manufactured and supplied in two material variants, SmCo5 and Sm2Co17. |
|
We produce customer-specific magnets from the following magnet materials so that the magnets can be optimally adapted to the application in terms of both dimensions and material. By means of a sparkmachine we produce complicated forms such as segments for motors. The numbers in brackets are the code numbers according to DIN 17410 or IEC 404-8-1. We will be pleased to help you select a suitable magnet material for your requirements. |
WE CAN ALSO SUPPLY THE SmCo MAGNETS SHOWN BELOW
|
Magnetic values |
Energy product (BxH)max |
Remanence Br |
Coercive field strength (T = 20°C) |
Max. working temperature * |
|
| BHC | JHC | ||||
| kJ / m3 | mT | kA/m | kA/m | °C | |
| SmCo5 (145/120) | ≥ 145 | ≥ 850 | ≥ 620 | ≥ 1200 | = 250 |
| Sm2Co17 (200/150) | ≥ 200 | ≥ 1020 | ≥ 720 | ≥ 1500 | = 350 |
| Sm2Co17 (220/119) | ≥ 220 | ≥ 1050 | ≥ 790 | ≥ 1190 | = 300 |
INFLUENCE OF TEMPERATURE AT VARIOUS RATIOS

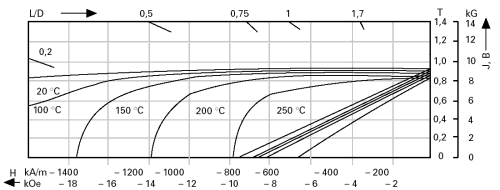

The curves shown below show the influence of temperature at various ratios (L/D).
* Vacomax is the registered trademark of VACUUMSCHMELZE GmbH und Co. KG.
For example: a round magnet 10 Ø x 5 mm is to be made from DeltaMagnet SmCo5 code number 160/120. With an L/D-ratio of 0.5 the magnet can be used up to 200 °C. If the magnet is to be used at around 250 °C, the length must be at least 7.5 mm (L/Dratio 0.75 / see also "Magnet design").
| SmCo5 (160/120) Vacomax 170 * | |||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
 |
||||||||||||||||||||||||||||||
| Sm2Co17 (190/159) Vacomax 225 HR * | |||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
 |
||||||||||||||||||||||||||||||
